Turn-Key Solutions for Lyophilized Beads

Millrock Technology offers turn-key solutions for LyoBead production that include a bead dispenser (BeadLab™), sealable tray, and freeze dryer. The combination provides all the necessary parts to quickly implement using LyoBeads.

Steps for LyoBead Production:

Bead Formation => Transfer => Freeze Drying => Storage

The BeadLab automated micro-dispensing system is used to create the beads, which are collected in the freeze drying tray. Once collected, the lid is sealed enabling non-contact transfer to the freeze dryer. The product is held in a frozen state inside the freeze dryer until the entire batch is loaded and ready for freeze drying. At the end of the freeze drying process, the trays are sealed under vacuum, isolating the product from the environment and protecting the operators from exposure. The sealed tray can be used for long term storage or for transfer to further processing.

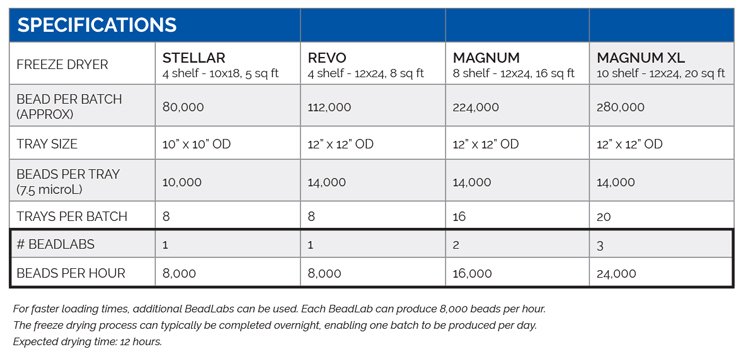

Turn-Key LyoBead Production Solutions Specifications

# SHELVES 4 shelf - 10x18, 5 sq ft 4 shelf - 12x24, 8 sq ft 8 shelf - 12x24, 16 sq ft 10 shelf - 12x24, 20 sq ft
BEAD PER BATCH (APPROX) 80,000 112,000 224,000 280,000
TRAY SIZE 10" x 10" OD 12" x 12" OD 12" x 12" OD 12" x 12" OD
BEADS PER TRAY (7.5 microL) 10,000 14,000 14,000 14,000
TRAYS PER BATCH 8 8 16 20
# BEADLABS** 1 1 2 3
BEADS PER HOUR** 6,000 6,000 12,000 18,000

The freeze drying process can typically be completed overnight, enabling one batch to be produced per day. Expected drying time: 12 hours.
** For faster loading times, additional BeadLabs can be used. Each BeadLab can produce 8,000 beads per hour.

LyoBead Tray
Lyobeads

Benefits & Advantages

What are LyoBeads?

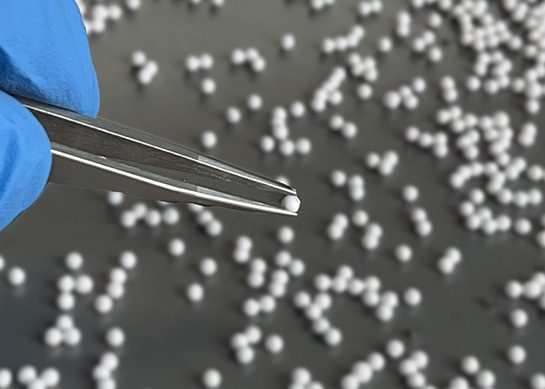

LyoBeads are spheres of customizable lyophilized material that contain a specific volume of material, typically in the 5 microL to 20 microL range. LyoBeads are created through instant freezing of the liquid formulation in liquid nitrogen and then freeze drying. The final product is a consistent volume stable dry bead ready for long term storage that is easily reconstituted.

Types of materials that may benefit from LyoBeads

  • Diagnostic reagents
  • PCR assays
  • Bacterial vaccines
  • Buffers and chromophores
  • Enzymes, enzyme substrates, and co-factors
  • Antibodies and antibody conjugates
  • Calibrators and controls
  • Probiotics

Advantages of LyoBeads

  • Reduced setup time for assays
  • Reduced pipetting errors
  • Reduced freeze drying time
  • Long term stability at room temperature
  • Fast reconstitution

Advantages of The Vacuum Sealable Tray

  • Eliminates operator exposure
  • LN2 compatible for bead creation
  • Sealable for oxygen free transfer between BeadLab and freeze dryer
  • Sterilizable
  • Vacuum sealable post-freeze drying for long term storage

What are LyoBeads also called?

There are several other terms for LyoBeads:

  • Lyophilized beads
  • LyoSpheres
  • Lyophilized spheres
  • Lyophilized pellets
  • Diagnostic beads
  • Single assay beads
  • Lyophilized reagent beads
  • Multiplex beads
  • Master mix beads
  • Microbeads
  • PCR beads
Download Icon

Download LyoBead information in pdf format

The LyoBead Production System

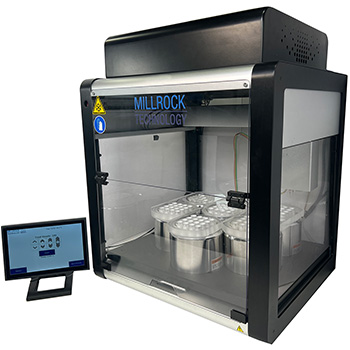

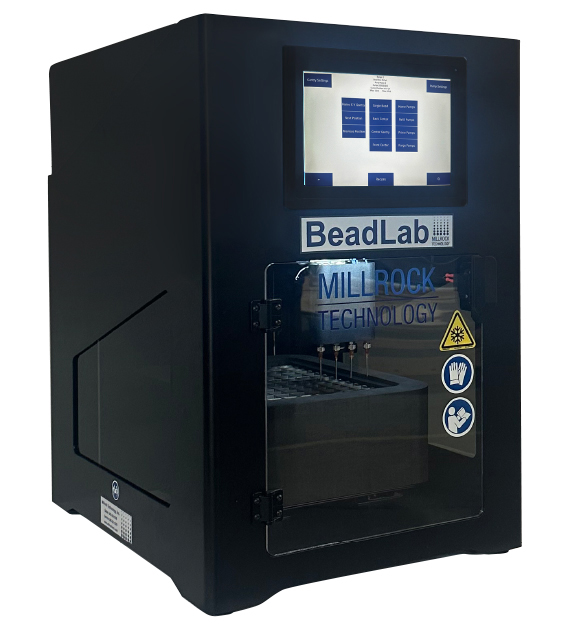

BEADLAB

lyobead-250

The liquid drops fall into an LN2 filled tray where they are collected.

At the end of the bead production process, a borosilicate lid seals the tray for transport to the freeze dryer.

TRAY

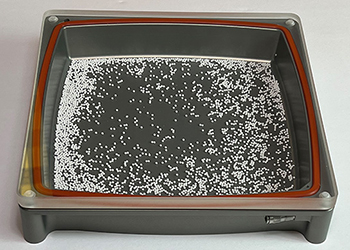

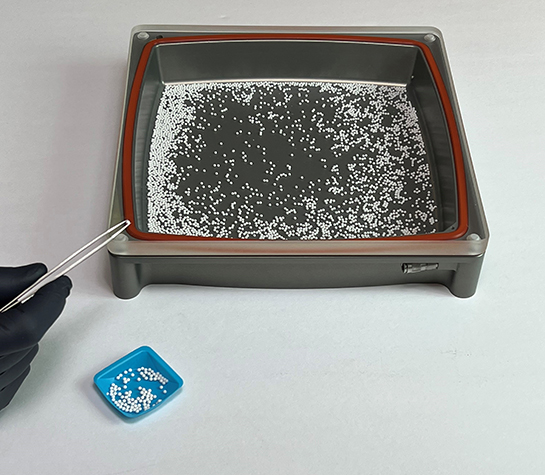

LyoBead Tray

An aluminum tray with anodized finish combined with a borosilicate lid enables bead production and collection, transfer, freeze drying process, and post-freeze drying storage.

The sealable trays offer a method for isolating the operator from exposure to the product in the tray.

At the end of the freeze drying cycle, the trays are vacuum sealed to protect both the product and operator.

The trays are cleanable and sterilizable.

FREEZE DRYER

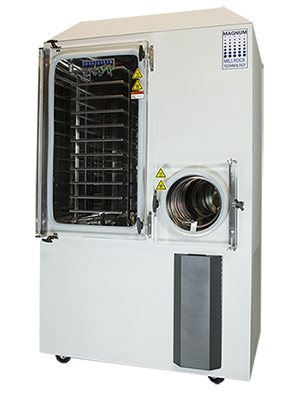

Magnum for LyoBeads

The freeze dryer is designed to accommodate LyoBead specific application requirements including pre-frozen shelves for storage of the frozen beads prior to freeze drying.
