STELLAR® Laboratory Freeze Dryers

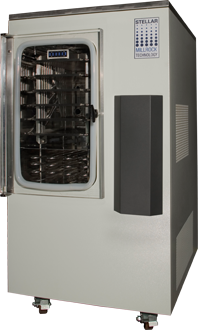

STELLAR® Freeze Dryer

Versatile Laboratory Freeze Dryer

Looking for a freeze drying workhorse for your lab? We have listened to all of your requests for a hardworking, versatile lyophilizer to be used in applications from proof of concept to small scale production. The STELLAR Laboratory Freeze Dryer provides more performance and capacity than any other unit in its class  offering from 3.75 to 6.25 sq. ft. of shelf area and a condensing rate of 12 Liters in 24 hours.

Millrock Technology’s economical STELLAR Laboratory Freeze Dryer combines many of the features of larger systems, such as the Opti-Dry®and PLC lyophilization control system, into a small package. It’s ideal for most labs, fitting a wide array of freeze drying applications from investigational laboratory work to diagnostic kits. This tray lyophilizer combines top of the line components and design techniques in addition to options such as: a manifold, capacitance manometer, hydraulic stoppering, and more.

SYSTEM PERFORMANCE

  • Shelf pull down from +20 to –40C in less than 30 minutes
  • Vacuum pull down to 100 mT in less than 20 minutes
  • Vacuum leak rate less than 30 mT per hour
  • Vacuum level 10 mT in clean dry system (-85C)
Download Icon

Download brochure of STELLAR Freeze Dryer

Question Icon
Have a Question?
Ask our team of experts

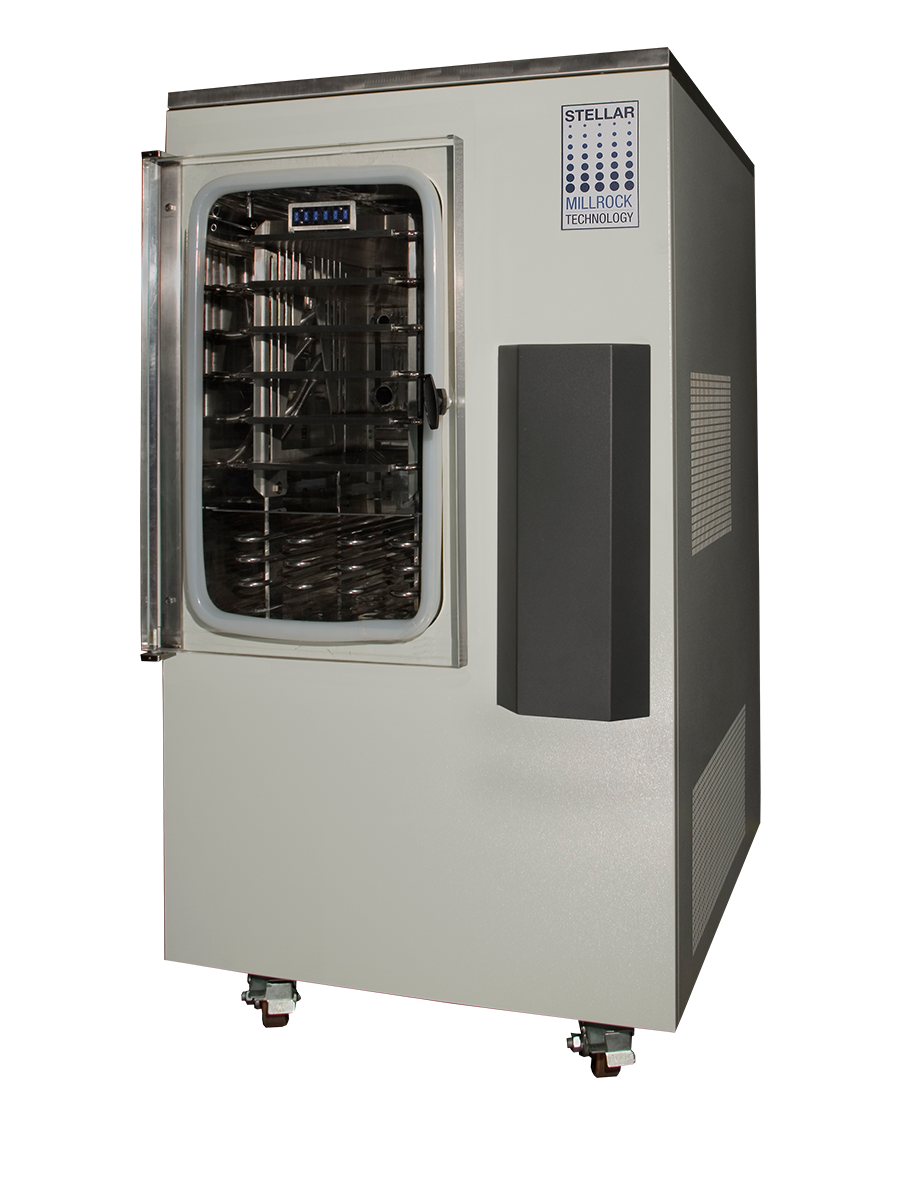

About the STELLAR Freeze Dryer

SPECIFICATIONS

CONTROL SYSTEM

  • PC/PLC with ethernet and remote Internet connectivity
  • Manual and automatic operating modes
  • Graphic and numeric data collection

SHELF SYSTEM

  • 3.75 to 6.25 sq. ft. of shelf area
  • Large shelves for more product capacity – 10″ x 18″ each
  • Pneumatic stoppering – no bladders or cables
  • 316L stainless steel on all wetted parts

CONDENSER

  • Internal with baffle
  • Exposed coil condenser for maximum efficiency
  • Hot gas defrost

REFRIGERATION

  • Oversized refrigeration components for high reliability
  • CFC-Free, non-proprietary refrigerants
  • Hot gas defrost

VACUUM

  • Pirani vacuum sensor standard, capacitance manometer optional
  • Vacuum control standard
  • Gas backfill standard
  • 195 LPM corrosion resistant vacuum pump with easy access

OTHER

  • Sanitary style fittings on all sensor and vacuum ports
  • Built-in validation port – sanitary fitting
  • Features and Specifications


Note: Specifications subject to change without notice. All specifications based on 20C ambient on 60Hz.



STELLAR STANDARD FEATURES
SHELF AREA 3.75 to 6.25 sq. ft.
SHELF ASSEMBLY Bulk or Pneumatic Stoppering
SHELF TEMPERATURE RANGE -45ºC or -70º to + 65°C
SHELF HEAT TRANSFER Hollow Fluid Filled
SHELF SIZE/FINISH 10″x18″, 316L, 20 Ra or better
CONDENSER TEMP -53°C or -85°C
CONDENSER CAPACITY 12L
CONDENSING RATE 12L in 24 hours
CONDENSER STYLE Exposed Coil
DEFROST Hot Gas
COMPRESSORS (SCROLL) 2hp (-53ºC), 2hp & 2hp (-85°C)
PRODUCT SENSORS 4, Type T thermocouples
VACUUM PUMP 195 LPM, Corrosion Resistant
VACUUM CONTROL Pirani w/ Solenoid & Needle Valve
GAS BACKFILL Included
CONTROL SYSTEM PC/PLC with AutoDry Software
TRAYS One per shelf included
CABINET 35″w x 42″d x 64″h
ELECTRICAL 230V/1ph/60Hz/30A



VIAL CAPACITY

VIAL
(ml)
DIA
(mm)
HT
(mm)
# Shelves
      1 2 3 4 5
2 16 41 480 960 1440 1920 2400
5 22 48 241 482 723 964 1205
10 24 58 199 398 597 796
20 29 71 136 272 408 544
50 43 81 55 110 165

* Capacity data shown in the above chart is an approximation.

SHELF CONFIGURATION

SHELVES SPACING
(in/mm)
Area
(sq ft/sq M)
3 4.5 / 114 3.75 / 0.348
4 3.25 / 82 5.0 / 0.464
5 2.5 / 63 6.25 / 0.580

BULK FILL

Depth 1 2 3 4 5
10mm 1.0 2.3 3.5 4.6 5.8
15mm 1.7 3.5 5.2 6.9 8.7
20mm 2.3 4.7 7.0 9.2 11.6

* Capacity data shown in the above chart is an approximation.

OPTI-DRY® PC/PLC CONTROL

Laboratory Freeze Dryer comes complete with PLC controls and a PC for programming and data collection. Our easy-to-use software, Opti-Dry, provides automatic freeze-drying, defrost, and system test. Data can be printed either numerically or graphically. This same control system can be used on industrial dryers, allowing scaling to production. An interactive maintenance screen simplifies component servicing.

OPTI-DRY uses an ethernet platform for hardware connectivity making data transmission extremely fast. It also provides web connectivity for those who want remote access to their systems.

AVAILABLE OPTIONS

• FreezeBooster® Controlled Nucleation*
• Up to 18 Product Temperature Probes
• Capacitance Manometer (Control Only)
• Proportional Vacuum Control
• Dry Vacuum Pump
• Stainless Steel Door
• Shelf Latching Kit
• LN2 Trap
• Water Cooled Condenser
• Hydraulic Stoppering (2 ml vials)
• Resistivity Probe
• Clean Room Configuration
• Isolator Interface
• 12 or 14 port Manifold
• H2O2 Integration Kit
• 21 CFR Part 11 Software
• Validation Documentation
• IQ/OQ Workbook
• FAT/SAT
