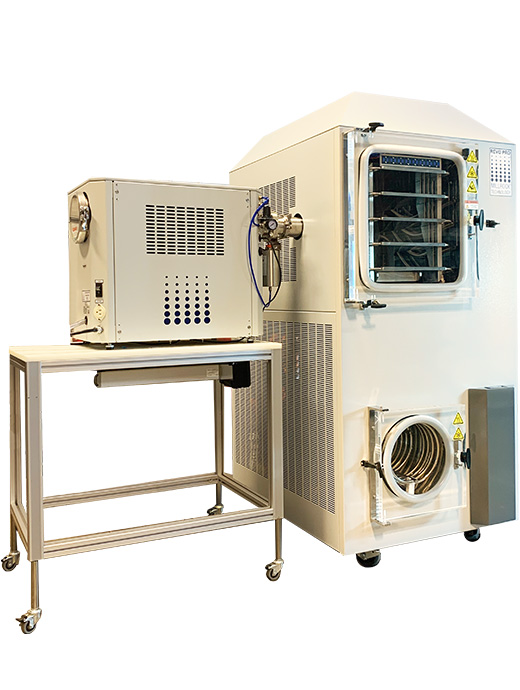

Revo® Pro Freeze Dryer

Revo® Pro Freeze Dryer

Innovation for Your Lab Scale Freeze Drying Needs

RevoPro with LyoPAT® offers robust, technologically innovative, advanced freeze dryer controls for all of your process needs. This freeze dryer is perfect for researchers who want to perform full laboratory tray dryer runs and is available with 1 to 5 shelves and 2 to 10 sq ft of shelf surface area.

Advanced Control Technology

  • Provides the data you need for cycle transfer and optimization
  • Determines critical process parameters such as Kv, cake resistance and mass flow
  • Delivers direct measurement of heat flux via proprietary AccuFlux technology
  • Creates efficient freeze drying cycles with AutoDry
  • Maximizes shelf temperature during primary drying while not exceeding critical temperature parameters
Download Icon

Download brochure of RevoPro Freeze Dryer

Question Icon
Have a Question?
Ask our team of experts





About the RevoPro Freeze Dryer

CONTROL SYSTEM

  • PC/PLC with ethernet and remote Internet connectivity
  • Manual and automatic operating modes
  • Graphic and numeric data collection
  • Automatic System and Leak Rate Testing
  • Options for Protocol Optimization and Controlled Nucleation



SHELF SYSTEM

  • 2 to 10 sq ft (0.185 to 0.929 sqM) of shelf area
  • Large shelves for more product capacity – 12″ x 24″ (304mm x 608mm)
  • Increased Stoppering Pressure – for 2ml vials
  • 316L stainless steel on all wetted parts



CONDENSER

  • 6″ vapor port standard
  • Exposed coil condenser for maximum efficiency
  • Hot gas defrost



REFRIGERATION

  • High reliability scroll compressors
  • Oversized refrigeration components for high reliability
  • CFC-Free, non-proprietary refrigerants

VACUUM

  • Pirani vacuum sensor standard
  • Vacuum control standard
  • Gas backfill standard
  • 330 LPM corrosion resistant vacuum pump



OTHER

  • Sanitary style fittings on all sensor and vacuum ports
  • Built-in validation port


Note: Specifications subject to change without notice. All specifications based on 20C ambient on 60Hz.

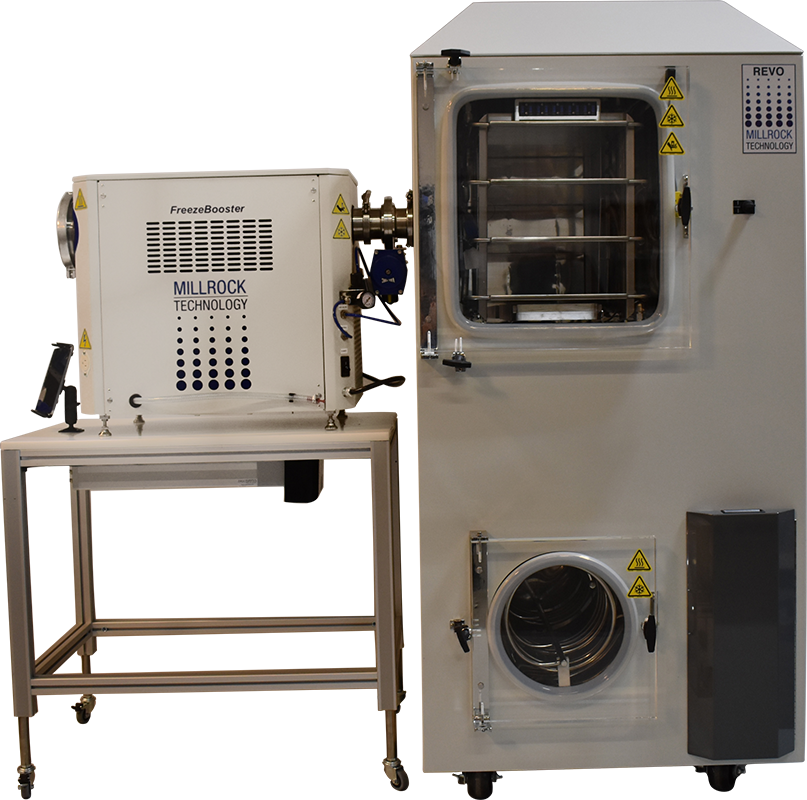

Inside the Revo Pro

Millrock Technology’s RevoPro with LyoPAT combines the most advanced technology with our robust and dependable Revo freeze dryer.

LyoPAT state-of-the-art control capabilities to monitor and control every possible aspect of the freezing and drying processes.

AccuFlux® the only technology that provides heat flow monitoring and control— including direct measurement of Kv and mass flow—throughout the entire freezing and primary drying processes.

AutoDry® totally automates primary drying by driving as much heat into the product as possible without exceeding the critical product temperature.

FreezeBooster® controlled nucleation enables the ability to study freezing approaches and its effect on the product and product cycle.

Millrock Reporter provides batch reporting in the format you design.

Features in the Revo Pro are patented and patent pending.
***FreezeBooster Optional

Click here to download a pdf to learn more about our Clean-In-Place water rinse technology featured in the Magnum Freeze Dryer.

*Standard CIP systems are designed for water use only. Other media may not be compatible and need to be disclosed and/or approved prior to contract.

Watch our Clean In Place (CIP) water rinse technology in action:


Check out our standard Revo Research and Development Freeze Dryer

Two Prominent Computer Engineers Working with Programming Softwa

Millrock Technology:

Your Freeze Drying Partner

When you purchase a Millrock product, you get more than a freeze dryer. You get a long-term partner delivering industry-changing innovations, high-performing products, and on-call expert support.

Additional Information

Step 1: Protocol Analysis

Analyze your existing protocol by collecting the critical process parameter data for both the freeze drying and primary drying cycles, including Heat Flow, Product Temperature, Mass Flow, Kv, Rp, and more, determined by the most advanced Process Analytical Technologies. Why use outdated technologies that provide only intermittent monitoring and extensive calculations to predict critical process parameters? With the Revo Pro, you get real-time, continuous process measurement and unparalleled control.

Step 2: Cycle Optimization

Save money and time by developing robust products with the shortest freeze drying cycle times. The Revo Pro provides you with the tools to optimize both your freezing and primary drying cycles, in order to develop the shortest freeze drying time and critical process parameters for cycle transfer.

Step 3: Cycle Transfer

Scale up, scale down the future lies in both directions. With the optimized critical process parameters, you can use the Revo Pro for scale-up of new freeze drying protocols, or scale-down analysis and troubleshooting of existing protocols
