REVO® Research and Development Freeze Dryer

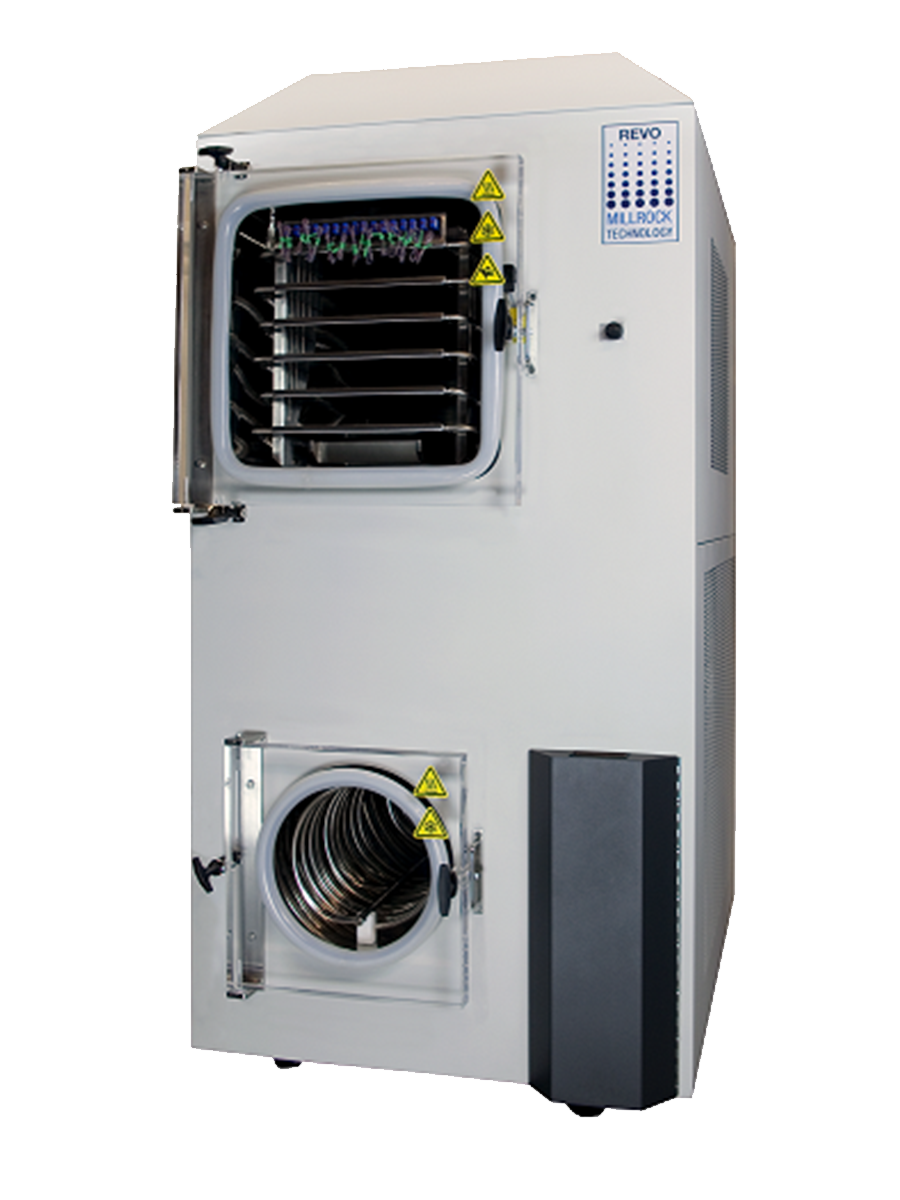

revo-product

REVO® Freeze Dryer

Protocol Development & Small Scale Production

The REVO Research & Development Freeze Dryer has the largest shelves and best shelf-to-shelf spacing of any freeze dryer in its class offering up to 10 sq ft (0.989 sq M) of shelf area and a condensing rate of 20 Liters in 24 hours. This allows for more product throughput in the same floor space. Using the best components and design techniques combined with the most advanced PC/PLC control system, the REVO R&D Lyophilizer offers data collection and self-testing features. Overall, the REVO R&D Freeze Dryer is the perfect solution for both your protocol development and small scale lyophilization production needs.

Our easy-to-use software provides automatic freeze drying, defrost, system and leak rate testing. Data can be printed either numerically or graphically. This same control system is used on industrial dryers, allowing scaling to production. An interactive maintenance screen simplifies component servicing. All systems are remotely accessible, with customer approval, for trouble-shooting process issues. Now available with Clean in Place.

SYSTEM PERFORMANCE
  • 5 shelf pull down from +20 to –40C in less than 30 minutes
  • Vacuum pull down to 100 mT in less than 20 minutes
  • Vacuum leak rate less than 30 mT per hour
  • Vacuum level 10 mT in clean dry system (-85)
Download Icon

Download brochure of REVO R&D Freeze Dryer

Question Icon
Have a Question?
Ask our team of experts

About the MicroFD Freeze Dryer

SPECIFICATIONS

CONTROL SYSTEM

  • PC/PLC with ethernet and remote Internet connectivity
  • Manual and automatic operating modes
  • Graphic and numeric data collection
  • Automatic System and Leak Rate Testing
  • Options for Protocol Optimization and Controlled Nucleation



SHELF SYSTEM

  • Up to 10 sq. ft. (0.989 a sq M) of shelf area
  • Large shelves for more product capacity – 12″ x 24″ (304mm x 608mm)
  • Increased Stoppering Pressure – for 2ml vials
  • 316L stainless steel on all wetted parts



CONDENSER

  • 6″ vapor port standard
  • Exposed coil condenser for maximum efficiency
  • Hot gas defrost



REFRIGERATION

  • High reliability scroll compressors
  • Oversized refrigeration components for high reliability
  • CFC-Free, non-proprietary refrigerants



VACUUM

  • Pirani vacuum sensor standard
  • Vacuum control standard
  • Gas backfill standard
  • 375 lpm corrosion resistant vacuum pump



OTHER

  • Sanitary style fittings on all sensor and vacuum ports
  • Built-in validation port



Note: Specifications subject to change without notice. All specifications based on 20C ambient on 60Hz.



REVO STANDARD FEATURES
SHELF AREA 2 sq. ft. to 10 sq. ft.
SHELF ASSEMBLY Bulk or Hydraulic Stoppering
SHELF TEMPERATURE RANGE -45ºC or -70º to + 65°C
SHELF HEAT TRANSFER Hollow Fluid Filled
SHELF SIZE/FINISH 12″x24″, 316L, 20 Ra or better
VAPOR PORT 6″ Standard
CONDENSER TEMP -53°C or -85°C
CONDENSER CAPACITY 30L
CONDENSING RATE 20L in 24 hours
CONDENSER STYLE Exposed Coil
DEFROST Hot Gas
COMPRESSORS (SCROLL) 3.5hp (-53ºC), 3.5hp & 2hp (-85°C)
PRODUCT SENSORS 4, Type T thermocouple
VACUUM PUMP 375 lpm, Corrosion Resistant
VACUUM CONTROL Pirani w/ Solenoid & Needle Valve
GAS BACKFILL included
CONTROL SYSTEM PC/PLC with Opt-Dry Software
TRAYS One per shelf included
CABINET 35″w x 46″d x 75″h
ELECTRICAL 230V/1ph/60Hz/30A (-53°C)



VIAL CAPACITY

VIAL
(ml)
DIA
(mm)
HT
(mm)
# Shelves
      1 2 3 4 5
2 16 41 774 1548 2322 3096 3870
5 22 48 403 806 1209 1612 2015
10 24 58 322 644 966 1288
20 29 71 218 436 654
50 43 81 96 192
100 52 92 65 130

* Capacity data shown in the above chart is an approximation.

SHELF CONFIGURATION

Shelves Spacing
(in/mm)
Area
(sq ft/sq M)
1 14.5 / 368 2 / 0.186
2 7.0 / 177 4 / 0.373
3 4.5 / 114 6 / 0.559
4 3.25 / 82 8 / 0.746
5 2.5 / 63 10 / 0.932

BULK FILL

DEPTH 1 2 3 4 5
10mm 1.8 3.6 5.4 7.2 9.0
15mm 2.7 5.4 8.1 10.8 13.5
20mm 3.6 7.2 10.8 14.4 18.0

* Capacity data shown in the above chart is an approximation.

OPTI-DRY® PC/PLC CONTROL

The REVO R&D Lyophilizer comes complete with PLC controls and a PC for programming and data collection. Our easy-to-use software provides automatic freeze-drying, defrost, and system test. Data can be printed either numerically or graphically. This same control system can be used on industrial dryers, allowing scaling to production. An interactive maintenance screen simplifies component servicing.

OPTI-DRY uses an Ethernet platform for hardware connectivity making data transmission extremely fast. It also provides web connectivity for those who want remote access to their systems.

For R&D, Protocol Development, Small Scale Freeze Drying Production, Cycle Automation, Opti-Dry offers all the tools you need.



BUILT IN FEATURES

• Product temperature feedback optimizes the recipe, both freezing and primary drying, based on the product temperature average.
• Multiple methods for Primary Drying Endpoint Determination (requires capacitance manometer).

AVAILABLE OPTIONS

• Water Defrost
• Up to 18 Product Probes
• Capacitance Manometer
• Proportional Vacuum Control
• Dry Vacuum Pump
• Isolation Valve
• Stainless Steel Doors
• Shelf Latching Kit
• LN2 Trap
• Water Cooled Condenser
• Resistivity Probe
Spider Sample Extractor
Millrock Reporter - Batch Reporting
Clean in Place (CIP) Video
• Clean Room Configuration
• Isolator Interface
• H2O2 Integration Kit
• 21 CFR Part 11 Software
• Validation Documentation
• IQ/OQ Workbook
• FAT/SAT
• Pressure Rise Testing (requires isolation valve)

ADDITIONAL INFORMATION

TBD
