CMFD Console Manifold Freeze Dryers

CMFD Console Manifold Freeze Dryers, Console Manifold Series Freeze Dryer
Console Manifold Series Freeze Dryer

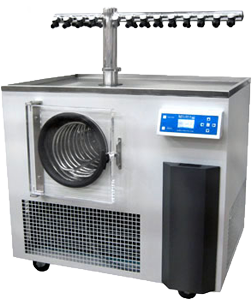

CMFD Console Manifold Freeze Dryer

In response to popular demand, the CMFD Console Manifold Freeze Dryer is a cost effective, high performance/high volume manifold freeze dryer with advanced microprocessor controls.

The CMFD Lyophilizer has a 20L per 24 hour condensing rate with a 30L capacity which is the perfect match for laboratories that need a quick return and fast/automatic defrosting. This manifold lyophilizer comes with a choice of manifolds: a 24 port manifold and a 48 port manifold. Both provide ample space for samples of various sizes to be dried simultaneously with a straight-thru vacuum valve that offers a direct vapor path.

Not sure if this freeze dryer is the right fit for needs? Remember this rule: for water based samples the –53 C condenser is the perfect choice. On the other hand, samples containing solvents or with low melting points, are best fit by  the –85 C condenser.

Still want to learn more? Contact us today!

CMFD FEATURES

CONTROL SYSTEM

  • 3Gen Advanced microprocessor controls



MANIFOLD

  • Manifold dryer with 24 or 48 Ports



CONDENSER

  • 316L construction on all wetted parts
  • 20 liters in 24 hours, 30L total capacity
  • Exposed coil condenser for maximum efficiency
  • Quick turn-around with hot gas defrost



REFRIGERATION

  • CFC-Free, non-proprietary refrigerants
  • Hot gas defrost



VACUUM

  • 195LPM vacuum pump



SYSTEM PERFORMANCE

  • Condenser pull down from to –40C in less than 20 minutes
  • Vacuum pull down to 100 mT in less than 20 minutes
  • Vacuum leak rate less than 30 mT per hour
  • Vacuum level 10 mT in clean dry system (-85C)

CMFD Series

Console Manifold Freeze-Dryer



APPLICATIONS

  • Laboratory Research
  • Proteins
  • Organic Tissues
  • Waste Products
  • Plant Material
  • Polymers

3Gen Microprocessor Controls

Intuitive and easy to use, Millrock has taken bench-top freeze-drying to a new level with the new 3Gen control system. Millrock’s team first developed features like the ‘READY’ indicator and auto power-outage recovery.   We now bring you ‘3rd Generation’ controls with a display that is easy to read and more intuitive than ever.

With a backlit display and industrial tested microprocessor, freeze drying has never been easier. Display parameters include vacuum, condenser temperature, run time, ambient temperature, and even displays when to maintain your vacuum pump oil.

CMFD Console Manifold Freeze Dryers, BENCHTOP Manifold Freeze Dryer, 3gen-microprocessor-controls

Microprocessor Instrumentation

DISPLAYBacklit Matrix LCD Temperature Vacuum Voltage Messaging
VACUUM DISPLAY0 to 3000 mTorr
CONTROL FEATURESAuto Start-up ‘Ready’ Indication Power Failure Recovery
ALARMS & REMINDERSLow Voltage High Ambient Power Outage Change Vacuum Pump Oil Clean Air Condenser

Accessories

CMFD Console Manifold Freeze Dryers, manifold-accessory

Manifold

A single tier 24 port manifold and a 48 port 2-tiered manifold are offered with the MD SERIES and come complete with vacuum valves. Each port is ½” external diameter and are mounted on 3″ spacing. The ports are spaced to provide room for the largest flasks.

CMFD Console Manifold Freeze Dryers, BENCHTOP Manifold Freeze Dryer, Vacuum Pump

Vacuum Pump

A 195 lpm vacuum pump is standard.

CMFD Console Manifold Freeze Dryers, BENCHTOP Manifold Freeze Dryer, stainlessware-freezedryware

Stainlessware Freezedryware™

Freezedryware provides the perfect solution to bulk drying and drying vials on a manifold freeze drying system.

CMFD Console Manifold Freeze Dryers, BENCHTOP Manifold Freeze Dryer, Vacuum Valves

Vacuum Valves

The straight-thru design of Millrock valves provide less flow restriction and have greater internal diameter than other ¾” diameter valves. The end result is faster, more consistent drying.

CMFD Console Manifold Freeze Dryers, BENCHTOP Manifold Freeze Dryer, flaskware

Flaskware

A complete line of flaskware is offered by Millrock, including flasks from 75 ml to 1200 ml with snap-on silicone tops.

CMFD Console Manifold Freeze Dryers, BENCHTOP Manifold Freeze Dryer, adapters

Adapters

Glass adapters provide an easy connection from the vacuum valve to hoses and other accessories. ¾” to ¾” and ¾” to ½” adapters are available in both straight and 45 degree. Ampoule adapters for smaller product samples are also available.

For a complete list and comparison of all our Freeze Dryers, please visit our main Freeze Dryer page.
